INSTALLATION

Creating Circuit Boards

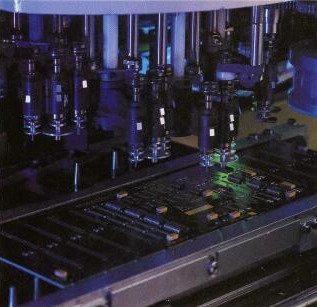

Pick and place equipment precisely positions various chips on the solder and contacts. Completed boards are then heated in the reflow ovens, allowing the lead coating and solder to melt together, affixing the chip to the printed circuit board.

Installing the Finished Chips

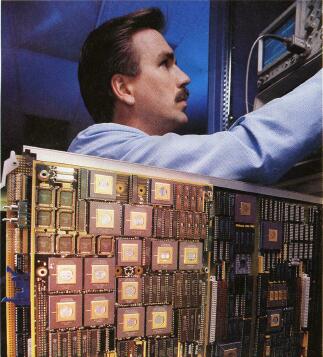

The completed circuit boards are installed in computers and thousands of other computer-controlled devices. Courtesy of E-Systems
